Products

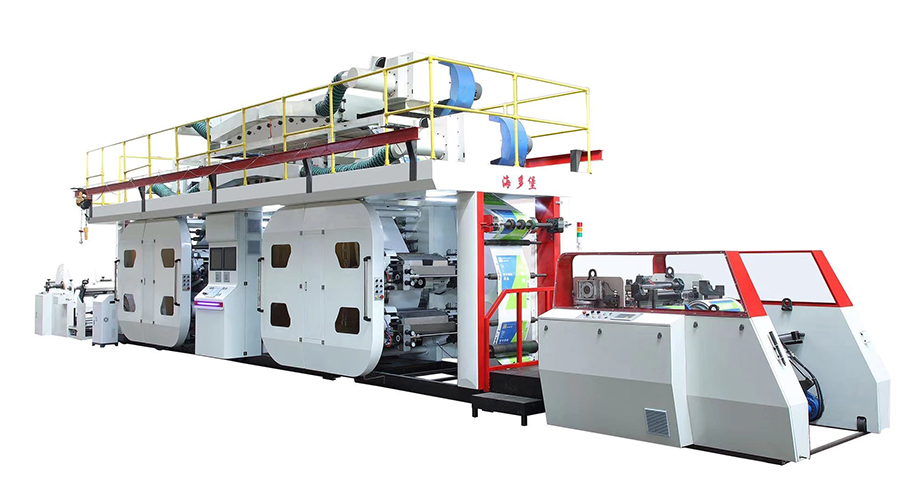

Satellite type flexographic printing machine

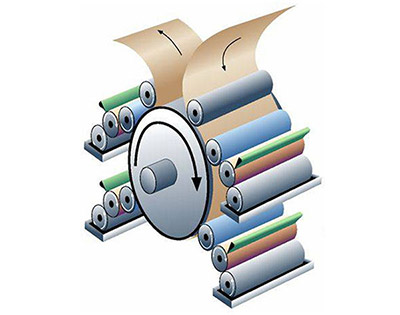

The satellite type printing machine is composed of four color groups around the center, a super large pressure roller structure.

Purpose:



Used for high-precision and high-speed printing of paper, film, OPP, non-woven fabric, plastic woven fabric, paper-plastic composite coil, double-station non-stop winding, automatic servo flying knife cutting cloth, safe and fast.


Equipment performance and features:



Automatic deviation correction, constant tension control, material cut off, digital display coil diameter and refueling warning.

No downtime refueling, speed reduction within 100 meters automatic servo cutting cloth double station swing arm exchange.

The base and thickened wall panels are cast iron materials to ensure the machine runs at high speed and stability.

The driving force of the printing system is servo synchronous drive, and the low torsion foot accelerates steadily, and the machine stops and does not waste.

Ceramic anilox rolls, single knife reverse ink scraper, automatic ink supply.

Closed high speed circulation air knife oven, patented product guarantees drying.

8 inch winding and expanding shaft for easy matching with square bottom valve pocket production equipment.

Low noise and high standard safety protection design, beautiful atmosphere equipment, high input, light maintenance, high efficiency.

High accuracy, fast speed and good efficiency.


Technical parameters:



Maximum printing width

650mm

Printing length

600-1200mm

Registering precision

±0.2mm

Printing color number

8 colors (4 front and 4 back)

Winding and unwinding diameter

≤1400mm

Printing speed

120-160m/min

Main motor power

7.5kw

Outline dimensions

17000×2900×3900mm



Configuration list:



Servo motor

Delta

PLC

Delta

Touch screen

Weinview

Low voltage electric appliance

Schneider

Switching power supply

Mean Well

Bearing

Zhejiang Renben

Wallboard material

Cast iron


Operating state appreciation
